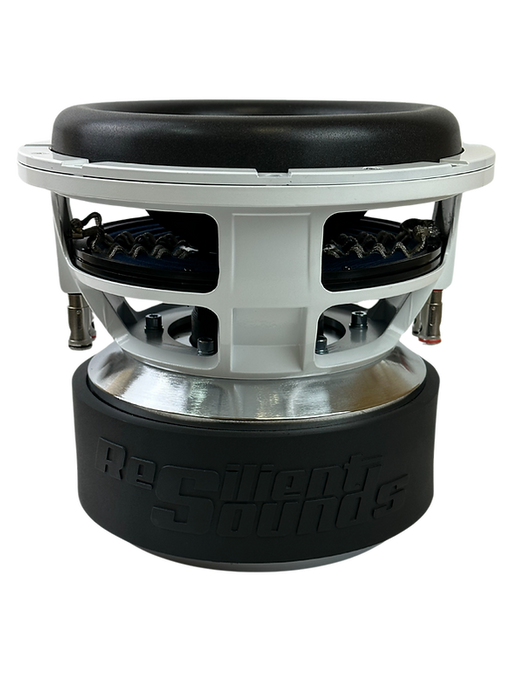

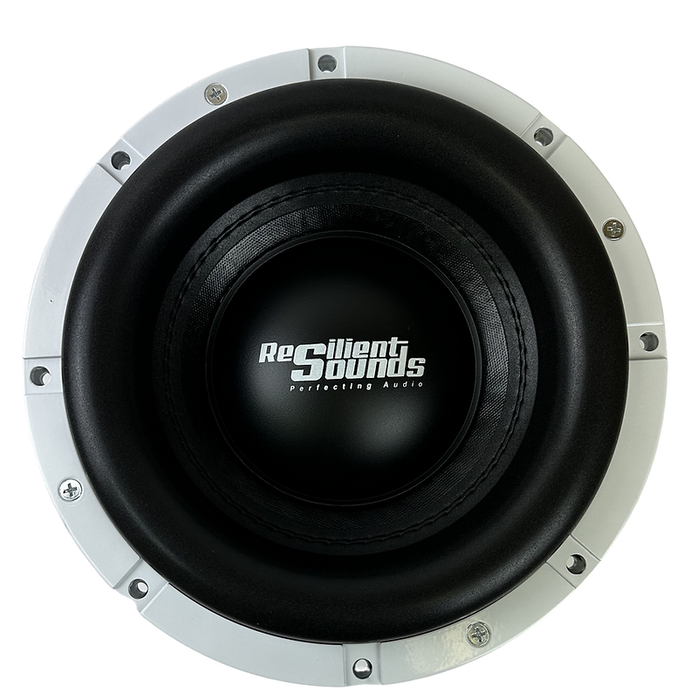

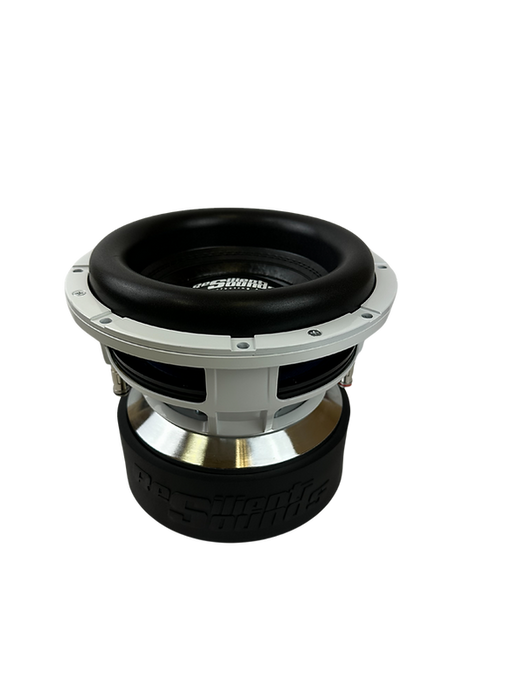

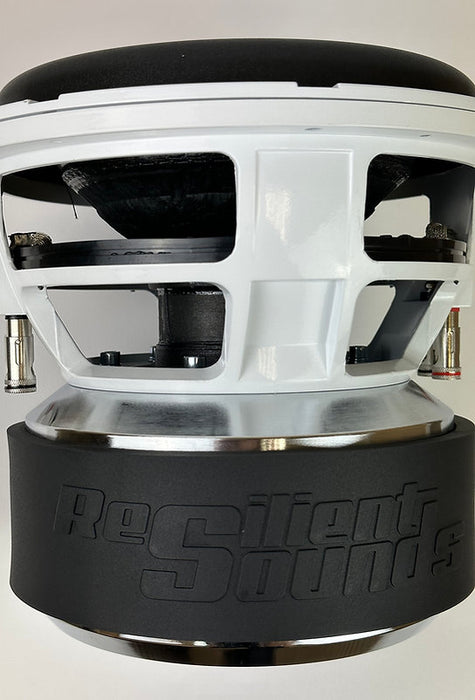

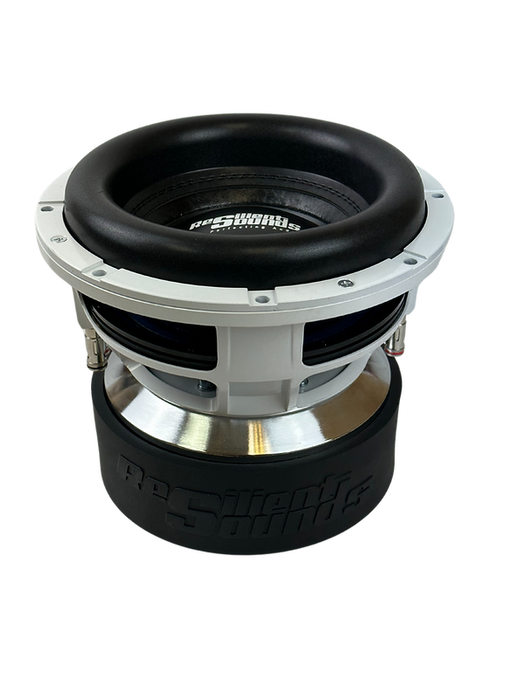

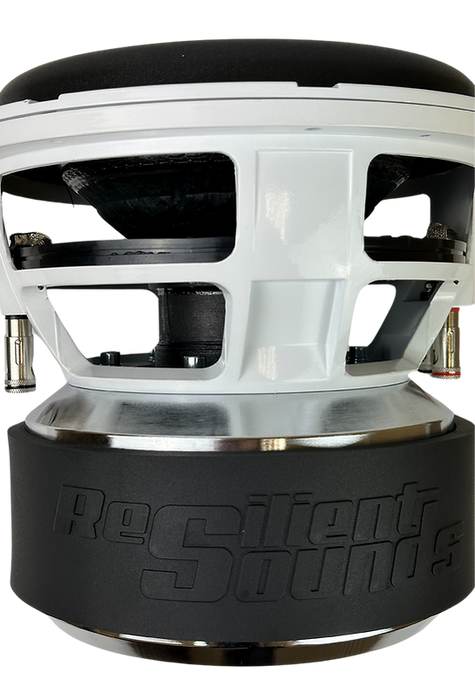

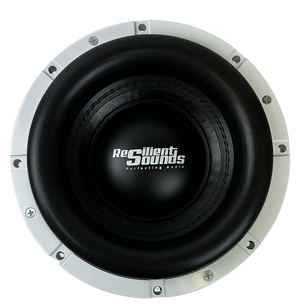

RESILIENT SOUNDS GOLD V2 10" DUAL 2 OHM (D2) SUBWOOFER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Low Impedance, High Impact 10-Inch Bass
The Resilient Sounds GOLD V2 10" D2 is engineered for high-efficiency systems where a low final impedance is critical. With a conservative 1500W RMS rating and a monumental 31mm of XMAX, this 10-inch subwoofer delivers uncompromising bass performance. Its core features—including the triple-stacked 220mm motor and the 3-inch 4-layer voice coil—ensure it handles extreme power reliably. The Dual 2 Ohm voice coil is optimized for achieving a 1 Ohm final load when wired in parallel (or 4 Ohms in series), making it the perfect match for high-current, 1 Ohm-stable mono amplifiers.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 10" |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |

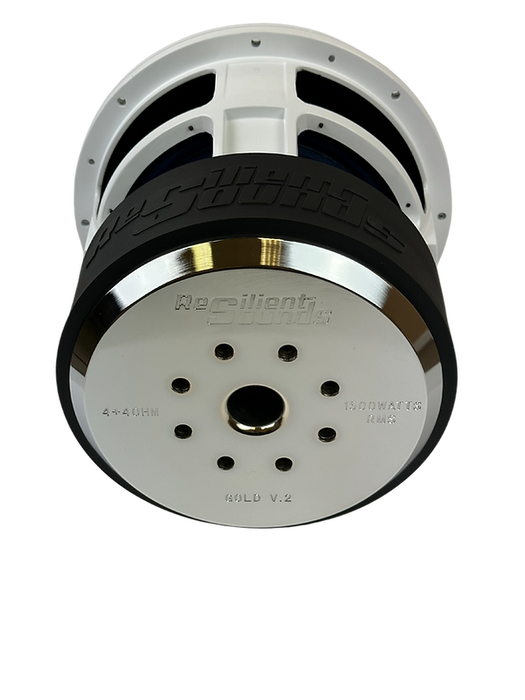

| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring |

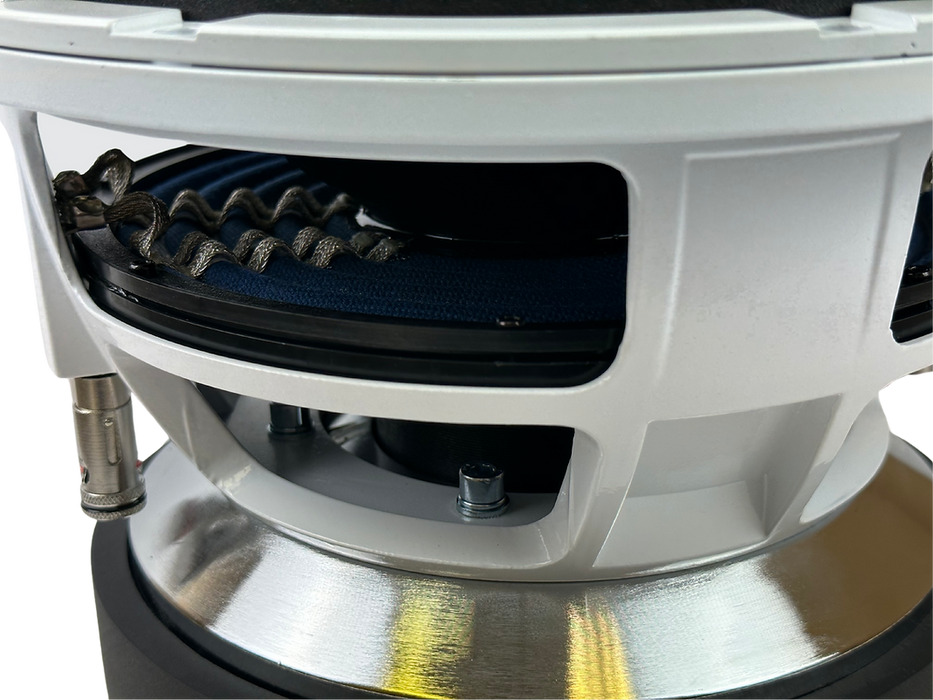

| Surround / Spider | NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |

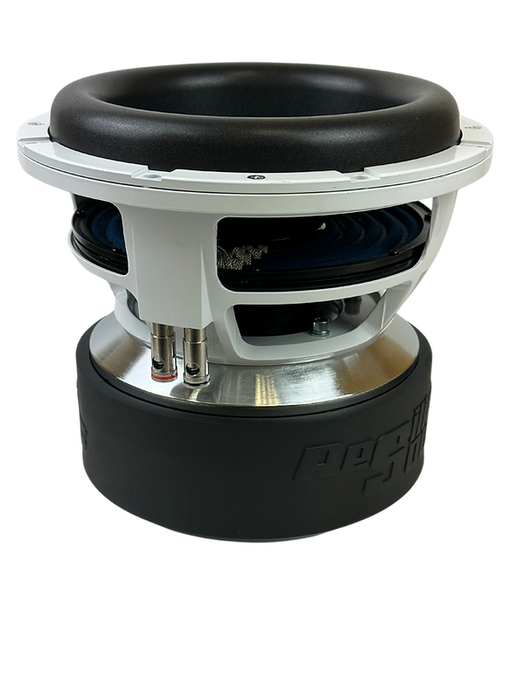

| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.25 - 2 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 8.25 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.17 CU FT |
| Outside Diameter | 10 23/32 INCHES |
