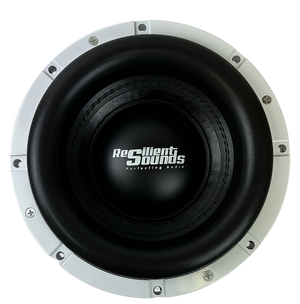

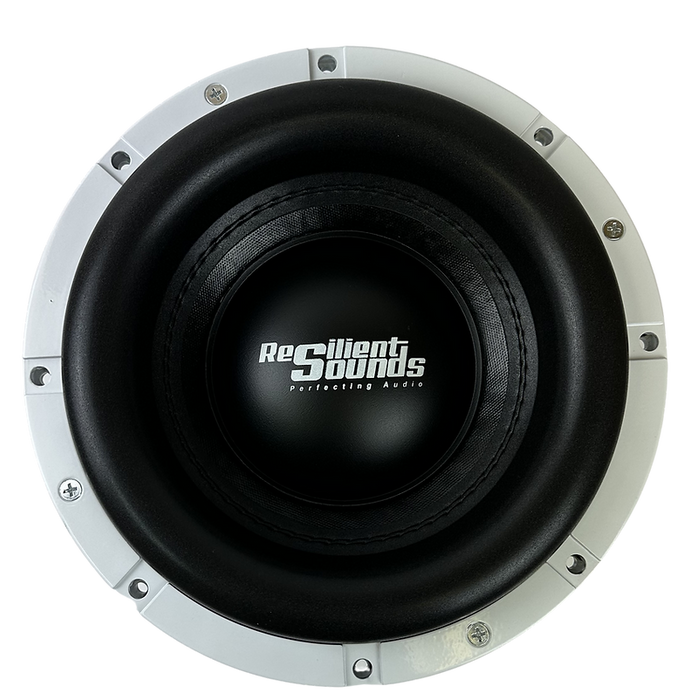

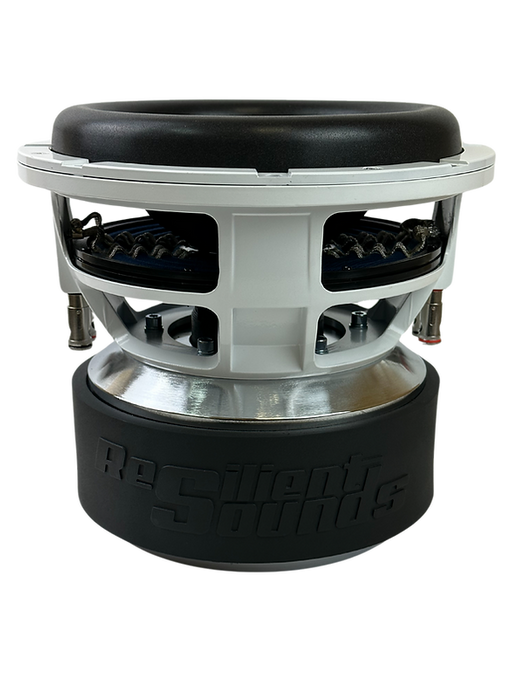

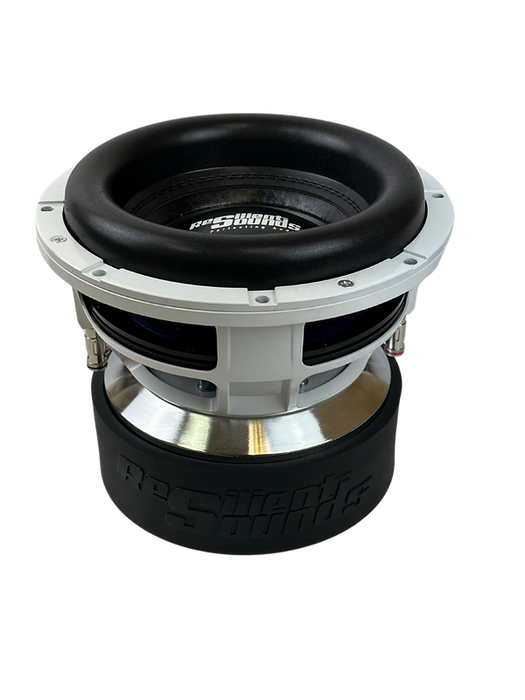

RESILIENT SOUNDS GOLD V2 10" DUAL 4 OHM (D4) SUBWOOFER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Unrivaled Power Density in a 10-Inch Frame

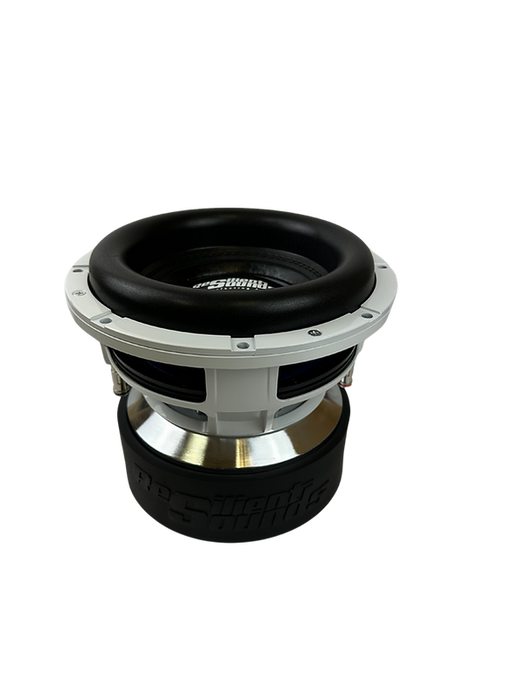

The Resilient Sounds GOLD V2 10" D4 subwoofer is a compact powerhouse, packing the high-performance features of the GOLD V2 line into a 10-inch format that excels in tight spaces. Conservatively rated at 1500W RMS, it is built for extreme output, featuring an immense 31mm of XMAX and a powerful, triple-stacked 220mm motor structure. The Dual 4 Ohm voice coil is perfect for common wiring configurations, allowing users to easily achieve a 2 Ohm or 8 Ohm final load. Utilizing a high-roll surround, 8.5-inch spider pack, and a rugged cast aluminum frame, this 10-inch woofer is designed to deliver authoritative, precise bass that belies its size.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 10" |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |

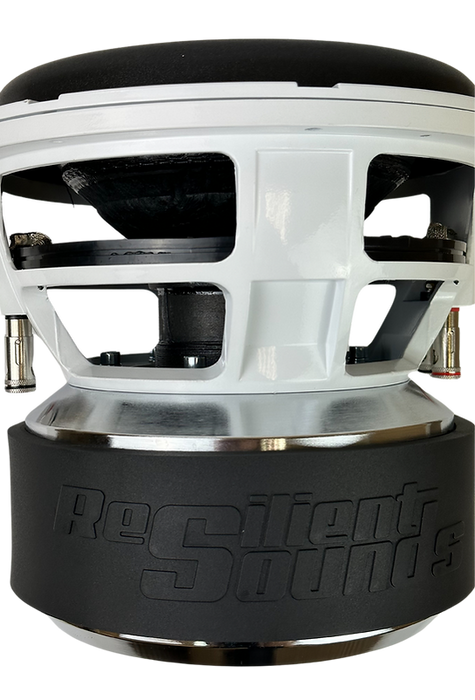

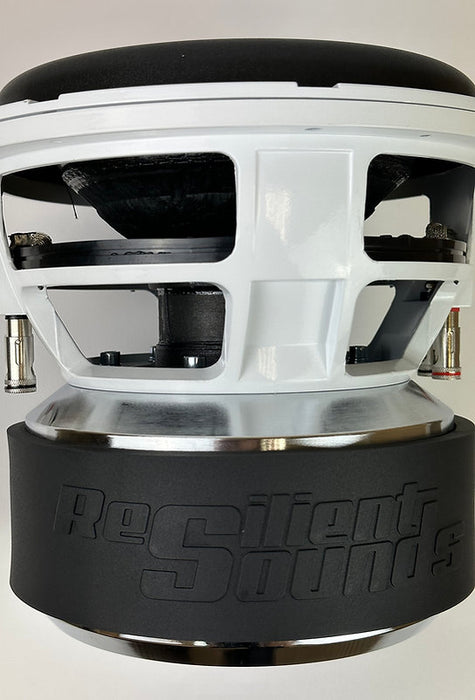

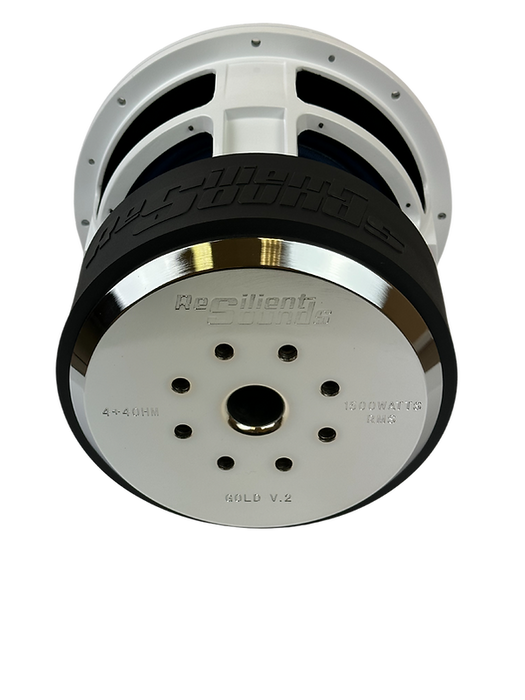

| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring |

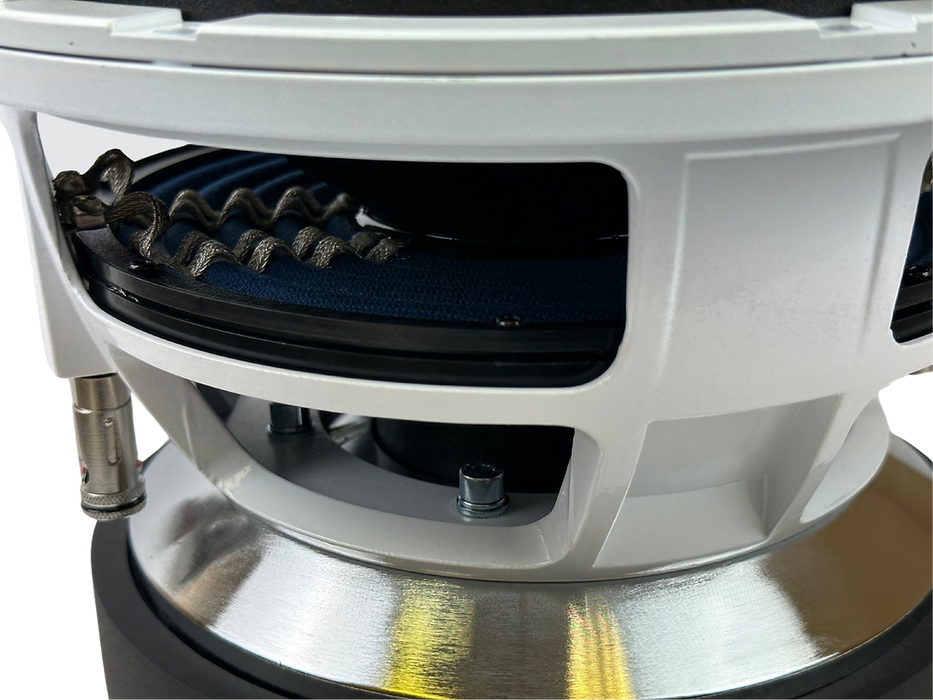

| Surround / Spider | NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |

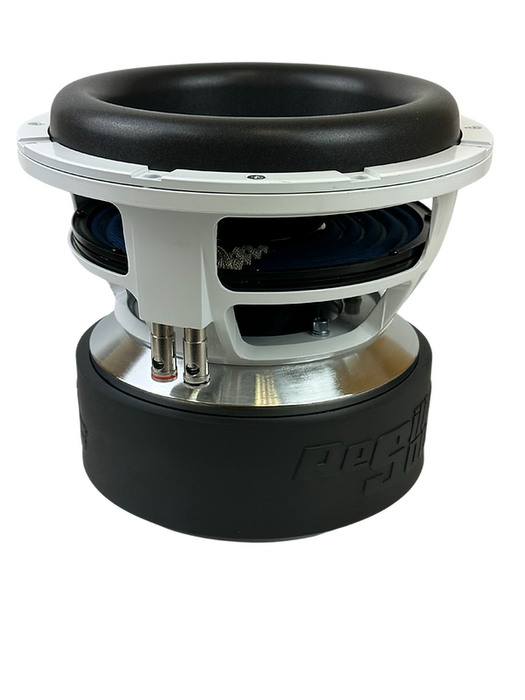

| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.25 - 2 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 8.25 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.17 CU FT |
| Outside Diameter | 10 23/32 INCHES |
