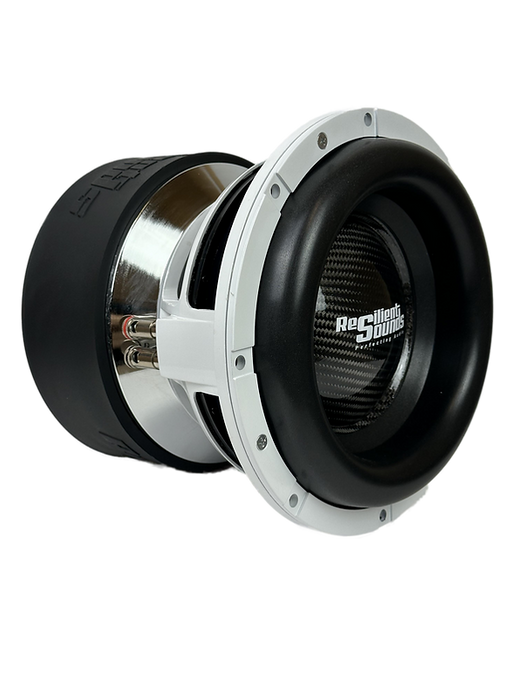

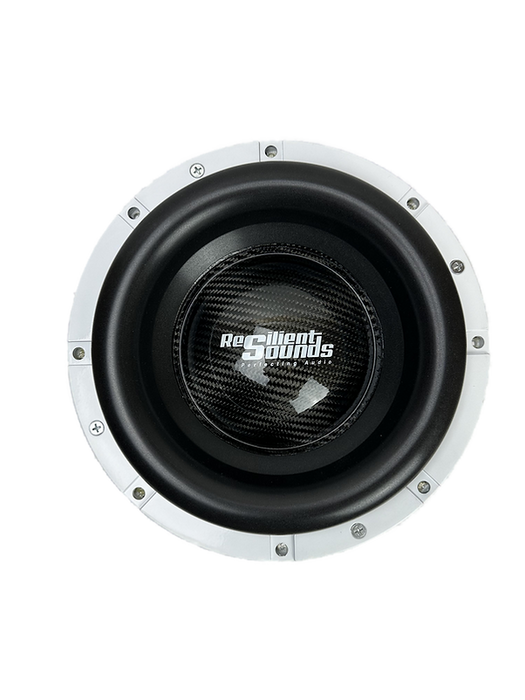

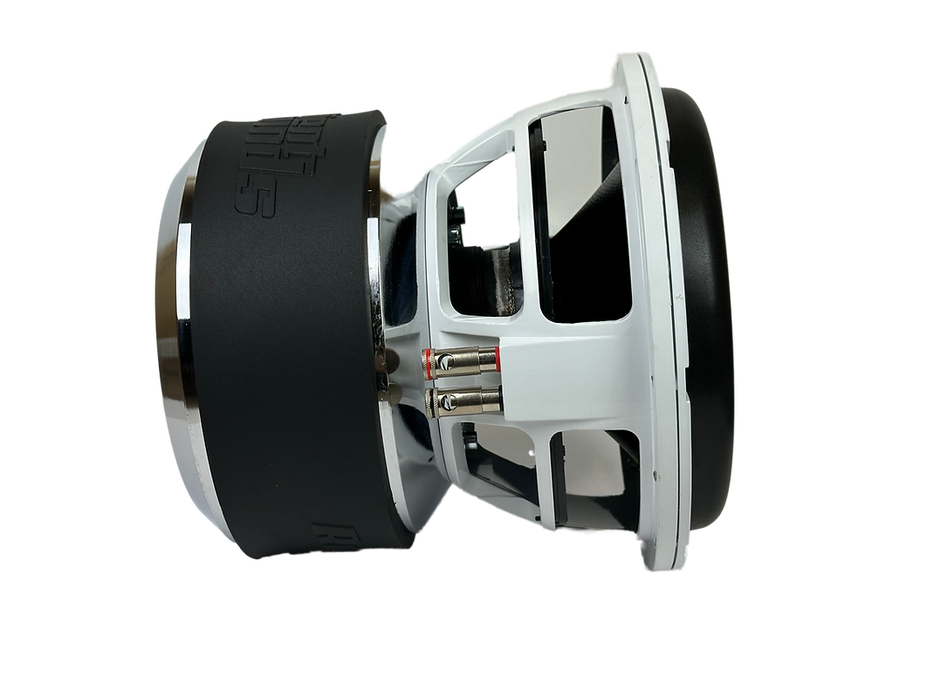

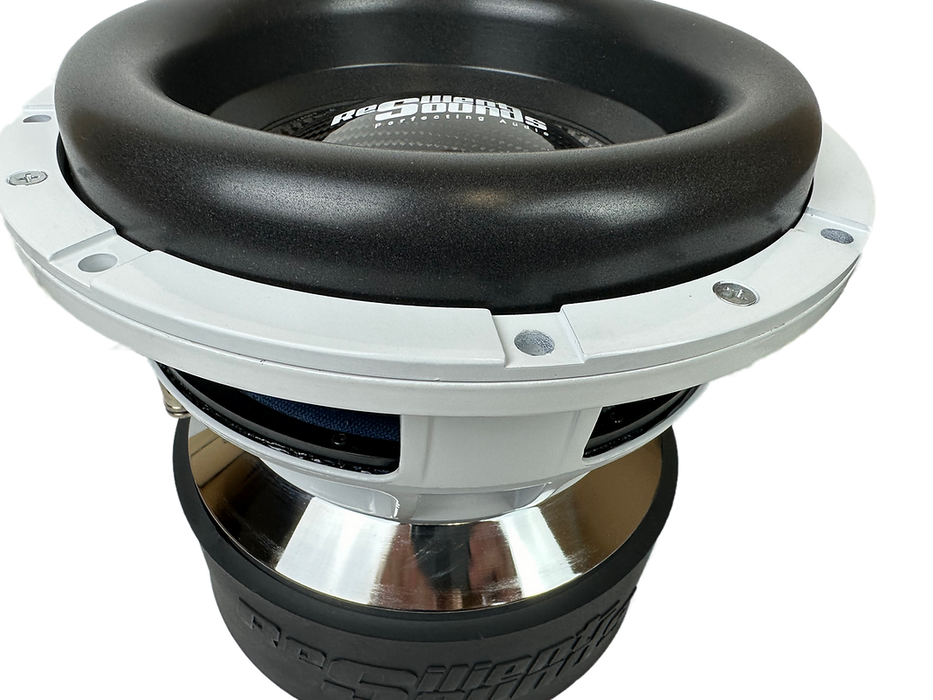

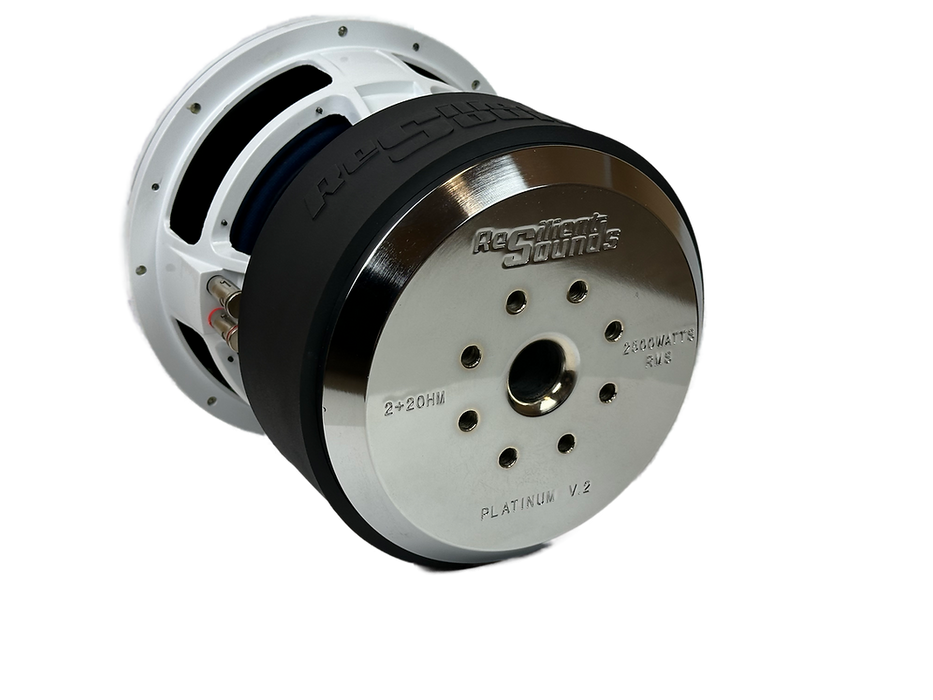

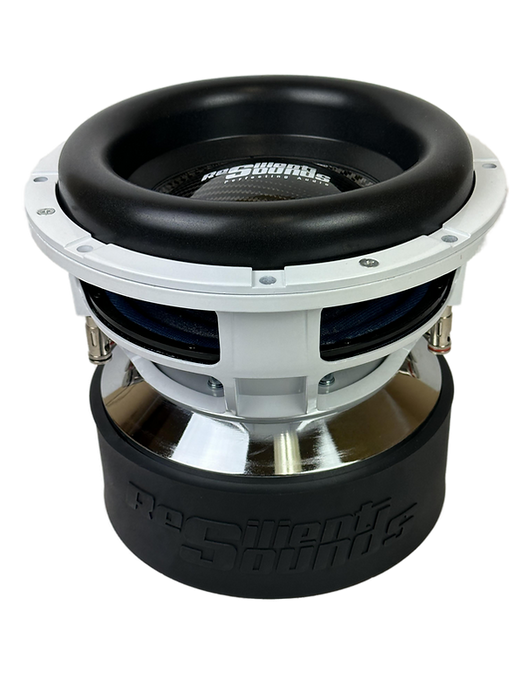

RESILIENT SOUNDS PLATINUM V2 10" DUAL 2 OHM (D2) SUBWOOFER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Extreme Power and Precision in a Compact Design
The Resilient Sounds PLATINUM V2 10" D2 is engineered for extreme power handling and sound quality, representing the next evolution of Resilient Sounds' high-end line. Conservatively rated at 2,500W RMS (5,000 Watts Peak), this 10-inch subwoofer features an XL triple-stacked motor and a 20% longer 3-inch 8-layer voice coil for superior thermal management and motor strength, yielding an increase of up to 50% in the motor's force factor compared to the V1. The Dual 2 Ohm impedance is perfectly suited for high-powered systems, allowing for a 1 Ohm or 4 Ohm final load. With a 35mm XMAX and a durable carbon fiber cone, the Platinum V2 delivers clean, aggressive bass that pushes the limits of a 10-inch driver.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 10 V2 |
| Nominal Impedance | Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | XL Triple Stacked Motor |
| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |
| Spider / Leads | 8.5" Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 1.5 - 2.25 CU FT |
| Tuning Frequency | 28 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 9.125 INCHES |
| Cutout Diameter | 9 7/16 INCHES |
| Displacement | 0.22 CU FT |
