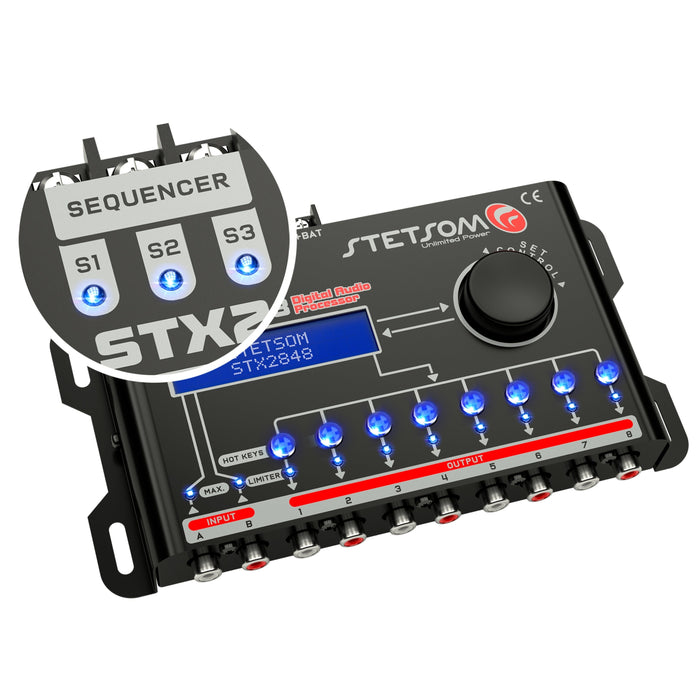

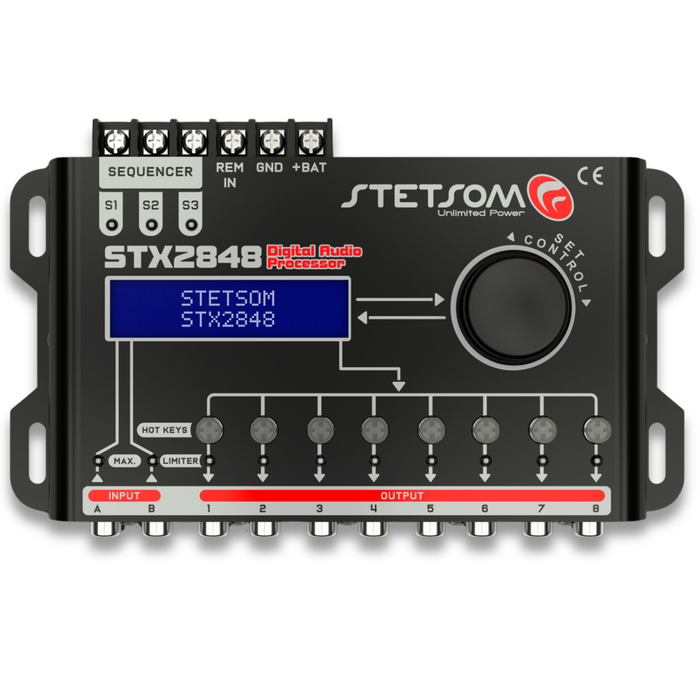

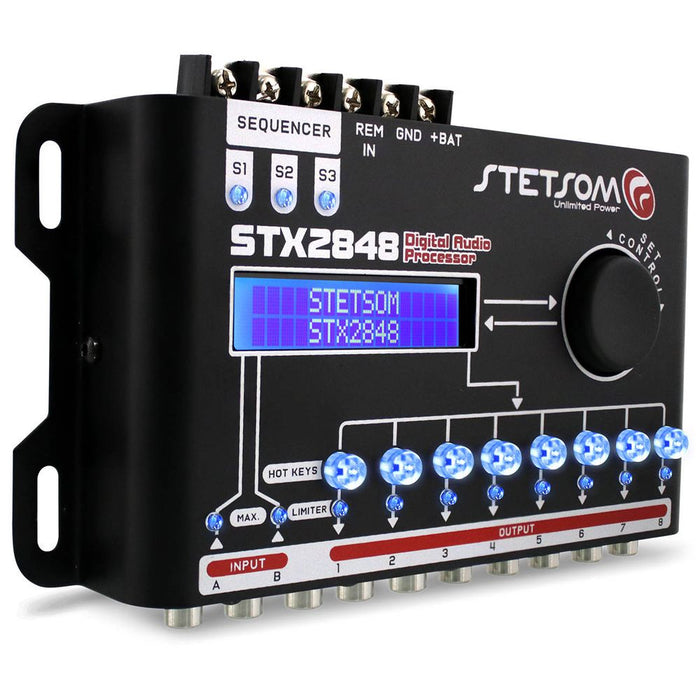

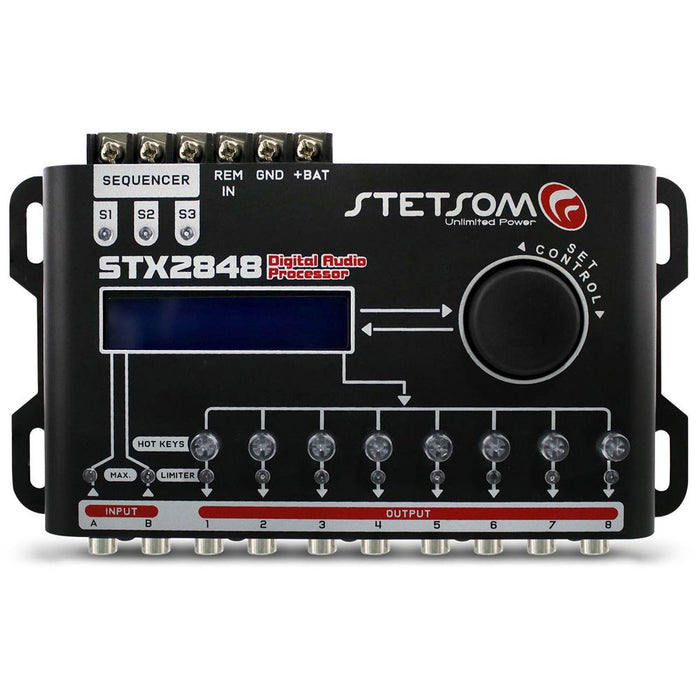

STETSOM STX 2848 DSP CROSSOVER & EQUALIZER 8 CHANNEL FULL DIGITAL SIGNAL PROCESSOR (SEQUENCER) 2.8
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Bringing innovation and technology to the Automotive Sound market, the STETSOM STX2848 is a powerhouse Digital Audio Processor designed to enhance and refine your audio system to professional-grade standards. Capable of making extensive adjustments—from precise filtering and graphic/parametric equalization to alignment, phase inversion, and dynamic limiting—this processor gives you full, real-time control over your sound.
The Demi-God DG-90.4 utilizes an efficient and robust design, guaranteeing long-lasting durability and superior component stability. With an excellent Channel Separation of >80dB and a remarkably low T.H.D. of <0.01%, this processor ensures a clean, detailed, and dynamic sound image. The wide range of powerful processing tools makes it the perfect foundation for any serious car audio system upgrade
Key Features & Hardware Overview
The STX 2848 is designed for both ease of use and professional control, featuring a full suite of management functions:
Core Processing
-
Integrated Equalization System: Features a 15-band graphic equalizer with manual tuning or 12 selectable presets for quick sound shaping.
-
Professional Parametric EQ: Dedicated 1 INPUT and 8 OUTPUT Parametric Equalizers for surgical sound corrections and detailed equalization control.
-
Precision Crossover: Define cut frequencies with Butterworth and Linkwitz-Riley filters, offering steep attenuation rates up to 48 dB/8ª.
-
Limiter with Dynamic Attack-Release: Protects your connected amplifiers and loudspeakers by dynamically controlling the attack and release parameters in real time.
-
High Accuracy Delay: Alignment capabilities to correct sound staging issues caused by speaker placement.
Convenience & Control
-
LCD Display: Allows visualization and interaction with the processor system in real-time.
-
Hotkeys & Encoder: Shortcut keys for channel selection and a rotary control for intuitive function navigation.
-
Sequencer Function: Allows sequential activation of other products (like amplifiers) via the remote activation (REM) connection.
-

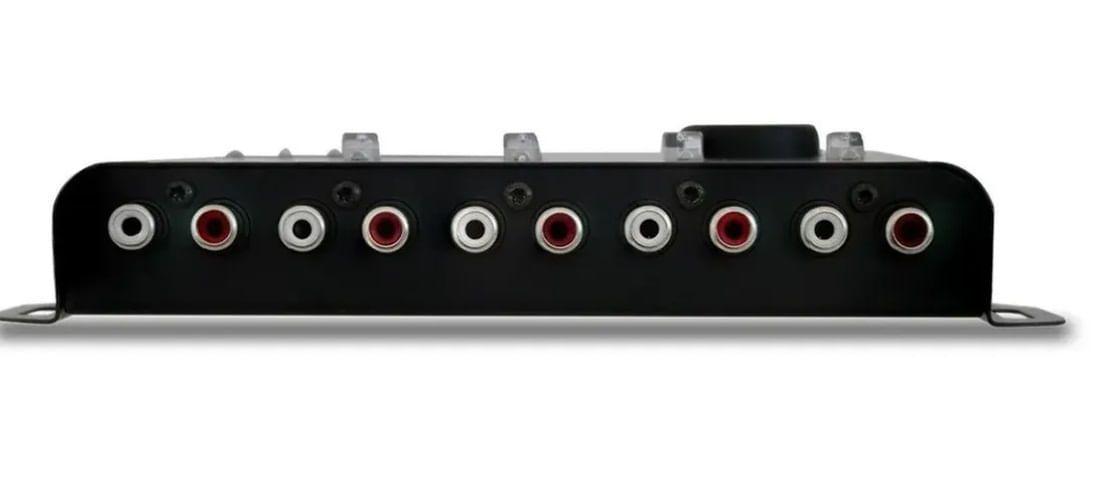

Connectivity: 2 RCA Audio Inputs (A and B) and 8 independent RCA Outputs.
-
Management: Functions for Save/Load Settings (Autosave + 4 slots), Security Password to lock editing, and Language Selection (English, Spanish, Portuguese).
SPECIFICATION & DETAILS
| Specification | Detail |
| Number of Channels | 2 Input / 8 Output |
| Graphic Equalizer | 15 Bands (gain ±12dB) |
| Graphic EQ Presets | 12 (Flat, Loudness, Bass Boost, Rock, etc.) |
| Parametric Equalizer | 1 Input + 1 per Output (gain ±12dB, Factor Q 0.4 ~ 10.0) |
| Crossover Filters | Butterworth & Linkwitz-Riley (12/18/24/36/48 dB/8ª) |
| Routing | A, B, or A+B (per output) |
| Alignment (Delay) | 0 ~ 8 ms (275 cm) High Accuracy |
| Phase Inversion | 0° ~ 180° |
| Limiter | Dynamic Attack-Release System (Threshold: -24 ~ 0 dB) |
| Master Level & Gain | 0 ~ 100% (Gain -45 ~ +15 dB per output) |
| Audio Generator | 10 Hz ~ 22 kHz (Tone, Sweep, Pink Noise) |
| Latency | 1.08 ms |
| Max. Input/Output Voltage | 5.6 Vpp (+8.2 dBu) |
| Signal-to-Noise Ratio | >90 dB |
| Total Harmonic Dist. (T.H.D) | <0.01% |
| Channel Separation | >80 dB |
| Frequency Response | 10 Hz ~ 22.5 kHz @ -1 dB |
| Power Supply | 10 V ~ 15 V DC |
| Max. Current Consumption | 450 mA @ 12.6 V DC |
| Dimensions (L x W x H) | 200 × 101 × 37 mm (7.9 × 4.0 × 1.5 in) |
